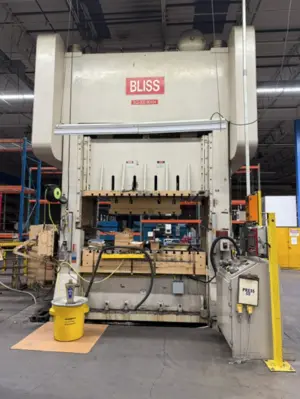

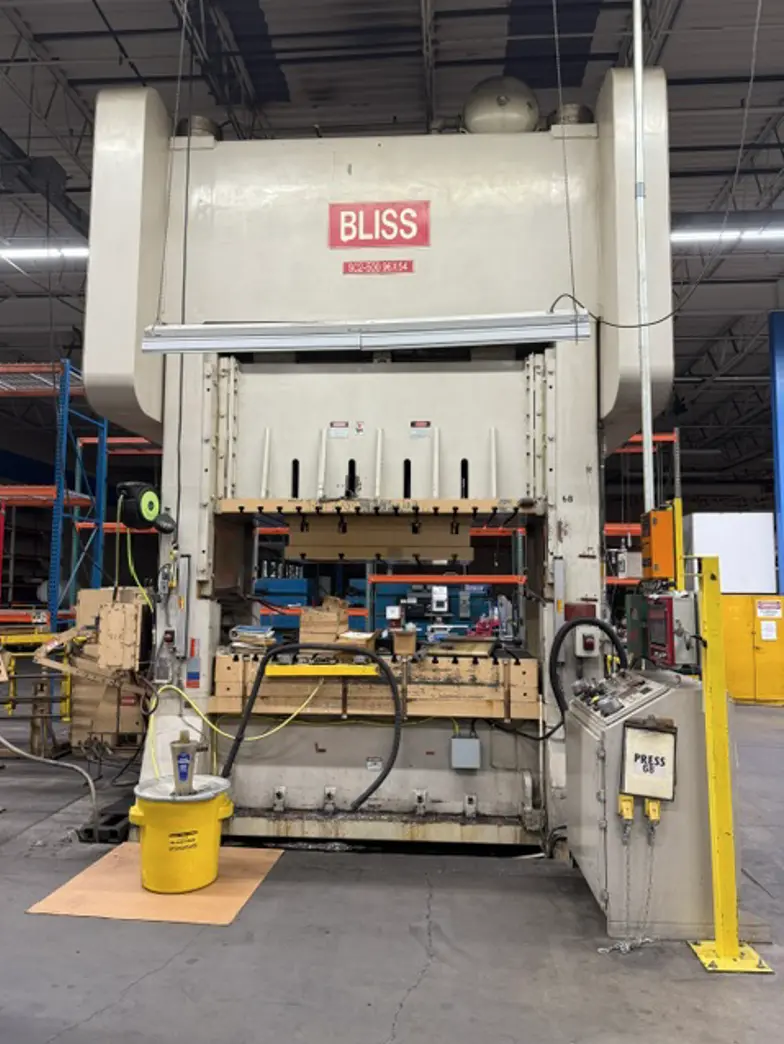

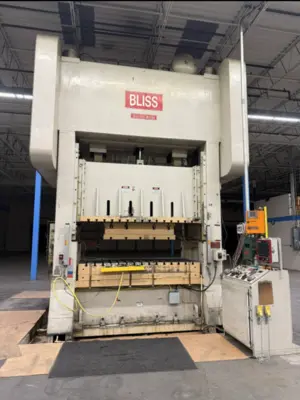

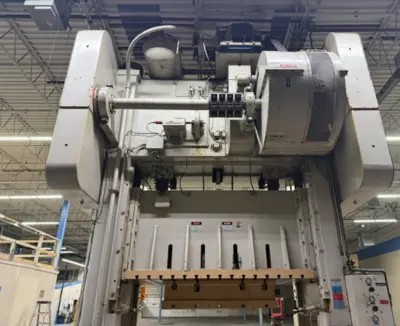

(1) Used 500 Ton Bliss Model SC2-500-96-48 Straight Side Double Crank Press
Have one to sell?
ConditionUsed
1 available
Used 500 Ton Bliss Straight Side Double Crank Press, Model SC2-500-96-48, Year 1989. Specs: Stroke 12 in, Bed 96x48 in, Speed 20-40 spm. Features Wintriss SmartPacPro, Toledo tonnage monitor, Weldotron light curtains, dual Bliss die cushions.
Capacity: 500 Ton
Stroke: 12"
Adjustment: 12" motorized
Shut Height: 44" Slide down adjustment up over bed
Bed Area: 96" lr x 48" fb
Bolster Plate: 8" thick
PRESS DIMENSIONS
NOTE: ALL DIMENSIONS ARE TAKEN FROM BLISS GENERAL PLAN DRAWINGS
Overall, Height base of press to highest point on press 243” w/o press mounts
Top of Bolster to floor w/o mounts 54”
Overall base of press depth front to back 102”
Overall depth of press at flywheel 131”

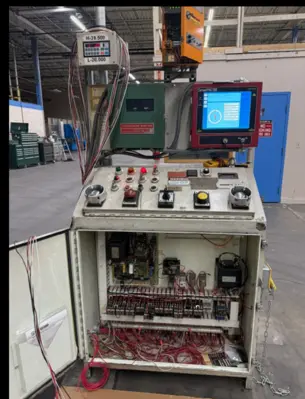

Wintriss SmartPacPro for ancillary equipment added 2025
Toledo tonnage monitor
Weldotron light curtains
Two Bliss UCC-24-22-6 die cushions
Independent pin pads, each 30” front to back x 36” left to right
Cushion pattern drilled through bolster 6 holes to land on each pad
Cushion maximum stroke 6”
Tonnage for EACH cushion 40 tons at 100 psi.
Cushions are serviceable and removable through top of bed once bolster has been removed.
