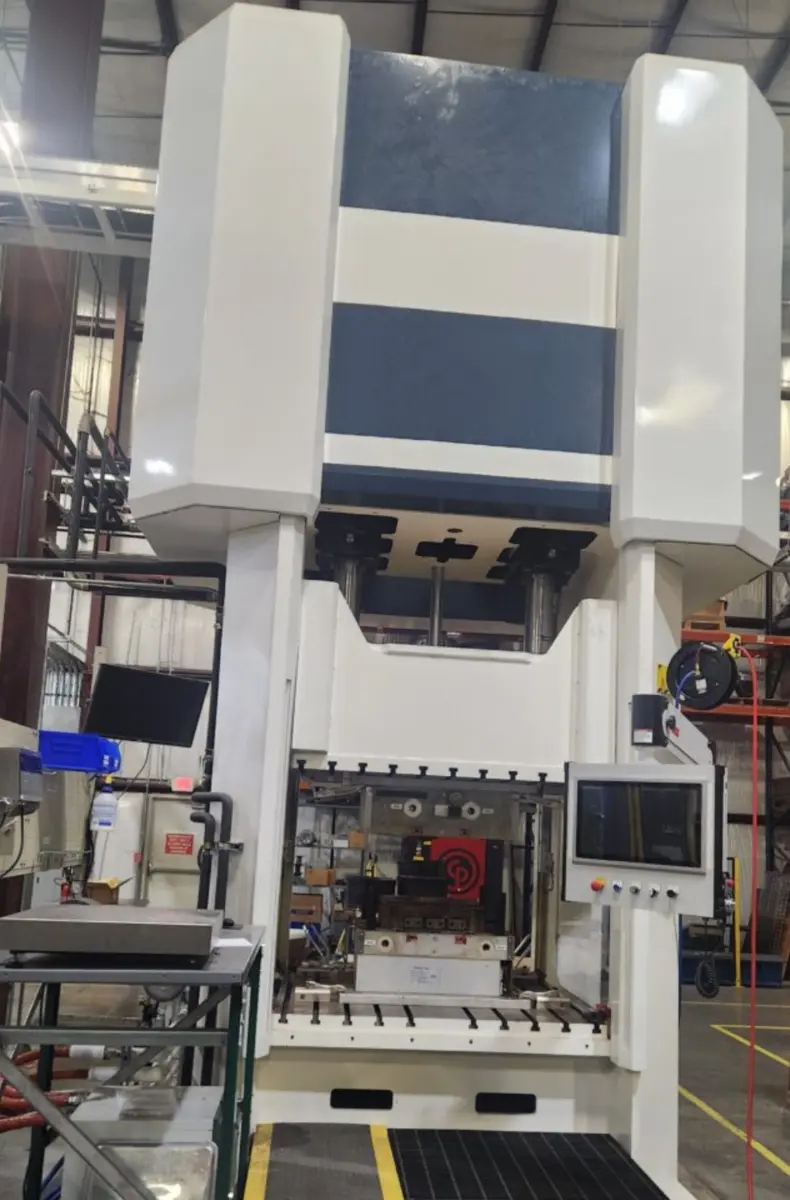

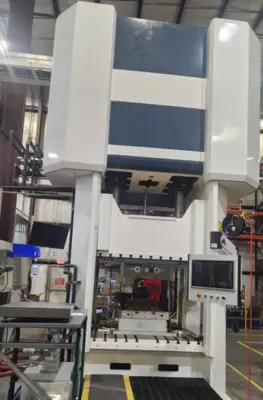

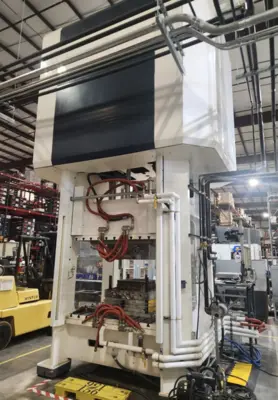

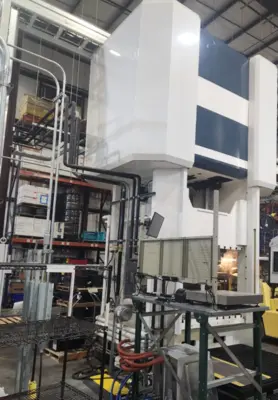

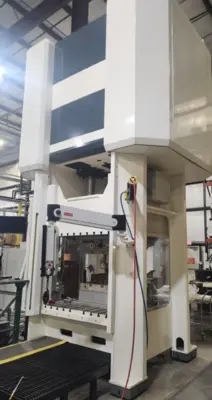

(1) Used 250 Ton Beckwood Linear Servo Screw Press
Have one to sell?
ConditionUsed
1 available
Capacity: 13 - 250 Ton
Stripping Capacity: 187 Ton
Stroke: 36"
Daylight Opening: 60"
Slide Area: 64" x 64"
Bolster Area: 64" x 64"
T-Slots: 6" centers - Ram & Bolster
Fast Approach / Retract Speed: 0.01 to 6 IPS
Pressing Speed: 0.01 to 6 IPM
Dwell Capacity: Infinite - Neat zero energy drawn to maintain the dwell
(brake holds tonnage)
Windows: 48" wide x 62 3/4 tall (verification required)
Press Control: Allen Bradley CompactLogix 5069-L306ER
(programmed for upto 15 steps)

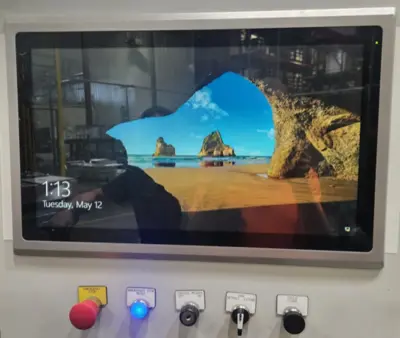

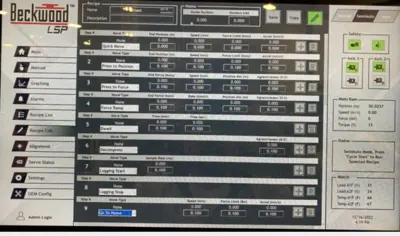

Machine Interface: Industrial PC (Windows 10 LTSB) w/AVEVA Web Studio
Presslink Communications: Allows Beckwood to monitor the press in real time

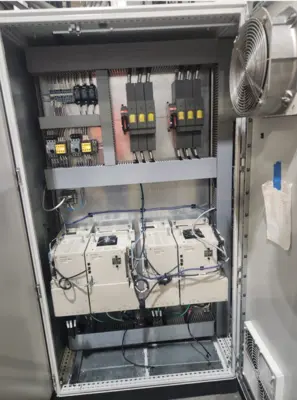

Servo Motion Controller: Yaskawa MP3300iec Controller with Advanced Data Acquisition
Pressing Motor: Two @ 22 kW (Two @ ~30 HP)
Fast Approach Motor: Two @ 30 kW (Two @ ~40 HP)
Power: 480 Volt, 3 Phase, 60 Hz
Full Load Amps: 295 Amps
Pneumatics: 90 psi minimum (estimated 2 SCFM)
Weight: 81,500 lbs
Linear Servo Press’s Nitches:
– Off center loading
– Draw and Punching Work with Nitrogen Die Systems
– Heated Platen Applications
– Precision Forming
– High Cleanliness Requirements
