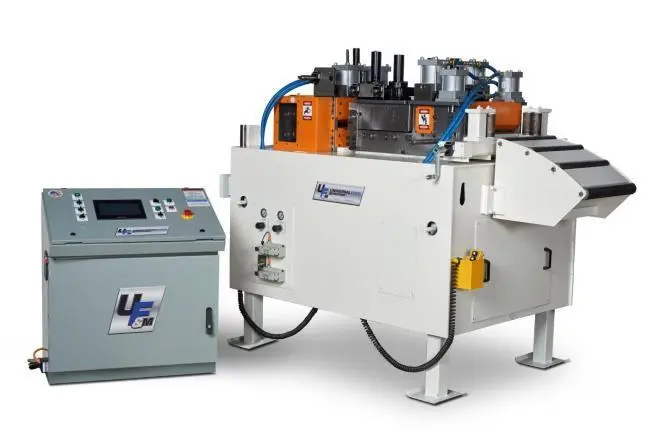

(1) NEW 36" wide x .090" thick Universal Feed & Machine Servo Feeder Staightener

System Configuration: Servo Piloting Feeder/Straightener
Maximum coil weight: NA
Minimum/Maximum coil I.D: NA
Feed roll diameter: 5.00”
Maximum stock width: 36”
Maximum stock thickness (MCRS): .090.”(2.3mm) @ 36”
Maximum stock thickness (MCRS): .165”(4.1mm) @ 18”
Minimum stock thickness: .020” @ 36”
Maximum progression: TBD
Minimum progression: TBD
Input power supply: 480V, 3 Ph, 60 Hz.
Input air supply minimum: 80 P.S.I.

MODEL RF50036 Servo Roll Feeder/Straightener
SPECIFICATIONS
Accuracy at feed rollers - to within plus/minus: .003”
Max. feed length: 0 to 999.999 in.
Universal Feed & Machine controller with closed loop, self-diagnostic,
brushless Servo drive system.
Eight button remote pendant (feed: jog fwd/rev; jog-to-length fwd/rev)
Self centering hand crank edge guides with 2-1/4” diameter
Entrance curve section (4) roll included

Mechanical Features
5.00” Dia., Full width, matte finished feed rolls
Sealed and lubed for life anti-friction spherical roller bearings
High performance timing belt drive system
Four gear cluster arrangement transfers power to the upper feed roll
The pivoting motion travels along the pitch diameter of the gear
while maintaining full gear mesh for all material thicknesses

Pivoting upper roll design maintains 100% full gear mesh regardless of
material thickness
Fully funneled stock path ensures smooth threading of new coils
Heavy Duty Cabinet Base 48” with +-5” of Adjustment
Pilot pin release of upper feed roll
Low inertia drive system provides efficiency and accuracy
Sheaves are used as the primary means of power from the servo motor to
the lower feed roll

Multi-Mode pilot release of upper feed roll.
Selectable actuation of pilot release feature between
Traditional Pneumatic Cylinder(s) or
Servo-Gearmotor (Servo-Cam) via selector switch located on operator station.
Both types of actuation require a maintained signal from the Press Controls
or a Programmable Limit Switch.
Traditional Mode pilot release uses pneumatic cylinder(s) and pneumatic
valving to open/close the upper Feed Roll.
Servo-Cam Mode employs a servo-gearmotor, crankshaft, and hardened steel
Cam lobes to lift the upper Feed Roll.
Servo-Cam Mode uses pendulum motion to raise and lower the upper feed roll.
Servo-Cam feature is completely programmable per job requirements and is
part of the job recipe

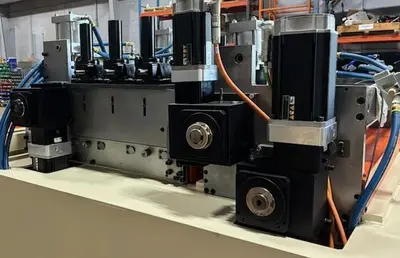

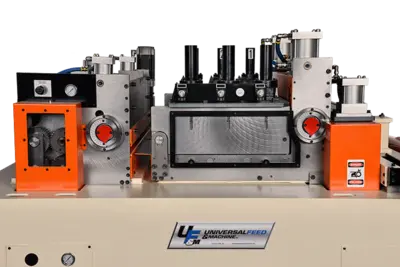

Model PTS350736 Straightener
Seven 3.50” dia. straightening rolls
7 straightening rolls
Power Pinch Rolls with air Clutch engagement for threading
Air operated pinch roll raise and lower
Individual upper straightening roll adjustment via (3) ton Screw jacks

1” of straightening roll engagement past tangent for enhanced straightening
capabilities of lighter gage materials
Multi-Mode pilot release of upper feed roll.
Selectable actuation of pilot release feature between Traditional
Pneumatic Cylinder(s) or Servo-Gearmotor (Servo-Cam) via selector
switch located on operator station. Both types of actuation require a
maintained signal from the Press Controls or a Programmable Limit Switch.
Traditional Mode pilot release uses pneumatic cylinder(s) and pneumatic
valving to open/close the upper Straightening Rolls.
Servo-Cam Mode employs a servo-gearmotor, crankshaft, and hardened steel Cam
lobes to lift the upper Straightening Rolls.
Servo-Cam Mode uses pendulum motion to raise and lower the upper
Straightening rolls.
Servo-Cam feature is completely programmable per job requirements and
is part of the job recipe.

Electrical Features
Universal Feed & Machine roll feed master control console contains the
closed loop,
self-diagnostic, AC brushless servo drive system.
A 10” color touch screen display
is the operator interface for entry of all job parameters and
Electrical Safety disconnect
Eight button, four function (jog fwd/jog rev; jog-to-length fwd/rev)
remote jog
Servo Drive Functions
Feed to Length
Jog Forward/Reverse
Jog Fast/Slow
Jog to length
Auto/Manual mode
Auto, Fault and Open Feed roll indicator

Operator Interface Functions
Main operator screen
200 Recipe Storage
English or Spanish language output
Inch or Metric length input
Setup mode password protection
Feed speed
Micro Adjust Plus/Minus .001
Batch count
Mode of operation
Acceleration
Fault History

Roll Feed/Straightener Optional Features
No Tools Press Mount Brackets: $3,000.00
The brackets travel along shafts so there are no bolts required
The shafts are fixed to the cabinet
Bracket plate is attached to the press
Motorized Pass line adjustment: $9,200.00

Universal Feed & Machine
1-2-3-4 Warranty
1 year Limited Warranty: All components originally installed or
manufactured by Universal Feed & Machine will be defect-free for a
period of One year after date of shipment. This warranty includes
parts and labor required to replace parts determined to have factory defects.

2 year Limited Warranty: All purchased mechanical components originally
installed by Universal Feed & Machine, including bearings, gears,
straightener jacks, cabinet jacks, castings, sprockets and chains
for a period of Two years after date of shipment. Excludes “wear” surfaces.

3 Year Limited Warranty: All parts manufactured by Universal Feed & Machine,
including frames, side plates, end members, weldments, mandrels and
rollers for a period of Three years after date of shipment.
Excludes “wear” surfaces.

4 Year Manufacturer’s Warranty:
The Control Techniques Unidrive SP servo drive on the feed will be
warranted for Four years from the date of shipment of the feed.
After Universal Feed & Machine standard warranty expires the drive
manufacturer supports this warranty.
WARRANTY COVERAGE:
Universal Feed & Machine warrants its products against defects in
material or workmanship as stated above from date of shipment.
Parts claimed defective must be returned; freight pre-paid, to our
plant in Auburn Hills, Michigan. Any part claimed defective and
determined to be by our factory will be replaced or repaired
(at our option) free of charge, F.O.B. our plant.

Our Standard warranty is void if appropriate maintenance procedures
have not been followed, the unit has been tampered with, altered in
any manner, or operated with parts other than those supplied or
recommended by Universal Feed & Machine. In no event shall
Universal Feed & Machine be held liable for special, indirect,
incidental or consequential damages, however arising.
Universal Feed & Machine. does not guarantee the equipment to
meet the requirements of any federal, state or local safety
codes and the end user wholly accepts all risk and liability
resulting from the use individually or in conjunction with any
other equipment.
Any change in the materials, design, or performance intended to
improve any product of Universal Feed & Machine shall not obligate
Universal Feed & Machine to modify any previously manufactured equipment.
EXCEPT AS EXPRESSLY PROVIDED HEREIN,
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING A WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
