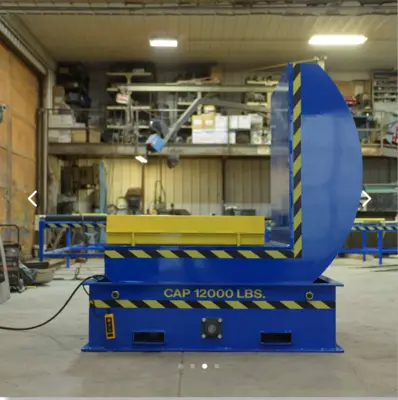

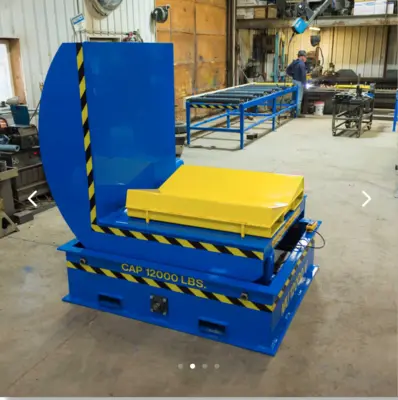

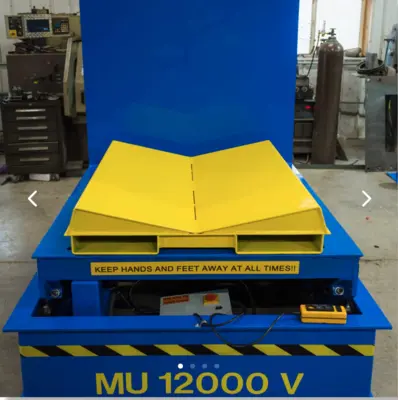

(1) NEW 30,000# x 80" OD Coilquip Mechanical Coil Upender with Rotation

Mechanical 30,000lb 80" Max O.D. Coil Upender
Brand new, made-to-order in the USA
30,000 pound capacity (available in 40k, 50k+)
80" O.D. coil maximum
Removable, 3-position V-saddle
Deck dimensions 60" x 68"
2-Channel Lodar remote controls (two included)
Wired diagnostic pendant included
3hp eurodrive motor and gearbox
Dual #140 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 66" L x 80" W x 96" H
Weight approx. 9,000lb
Fork slots for easy relocation

Rotating 30,000lb 80" Max O.D. Slew Ring Upgrade
Coilquip 180-degree rotational base upgrade for 30,000lb 80" max O.D.
mechanical upender.
Mechanically-driven (worm gear) slew ring
Separate control functions: control switch inside machine selects upend-only,
rotate-only, or simultaneous operation.
No hydraulics

Note: This rotational upgrade does not utilize unsealed castors, which get dirty
and break, as does most of the industry. It uses a slew ring with worm drive
motor similar to an excavator or bucket truck, which requires far less
maintenance and downtime.

OPTION 1: $2,500.00
Notched Deck for Overhead Lifting MU20/MU30
Notched and reinforced deck for overhead lifting or use with coil ram forklift
attachment.

OPTION 2: $2,500.00
Keeper Bar Upgrade for MU20/MU30
Adjustable keeper bars, which extend vertically from saddle to retain coils while
upending.

10 - 12 Week Delivery (may vary)

FOB: Indiana

Terms:
Deposit of 50% and purchase order must be received before the
requested machine can enter the production queue.
Delay in deposit will result in longer lead time.
Balance of 50% Prior Shipping
