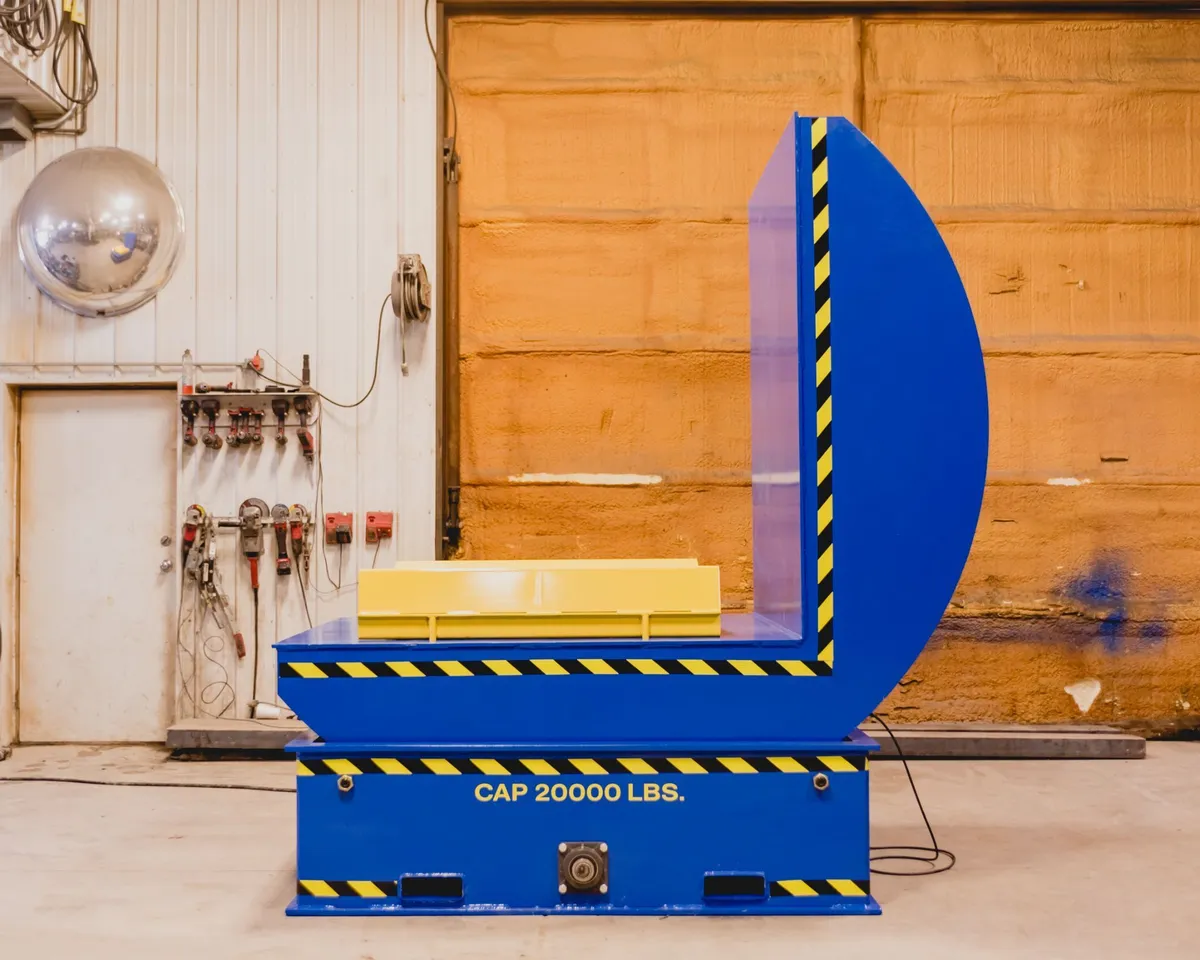

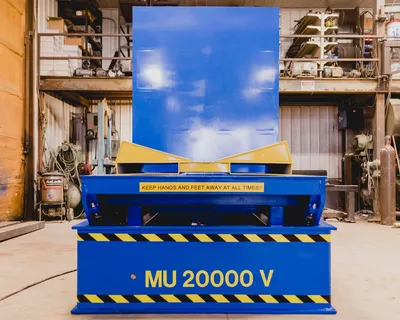

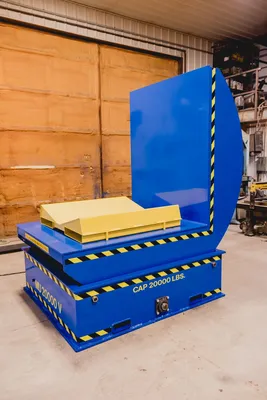

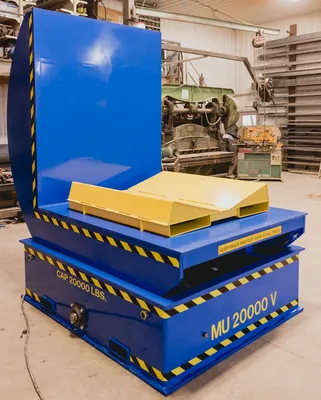

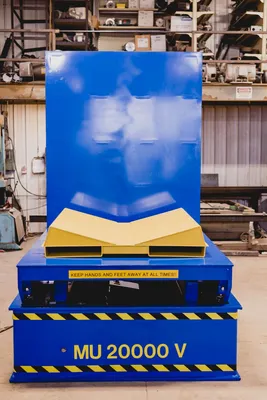

(1) NEW 20,000# x 60" OD Coilquip Mechanical Upender

Brand new, made-to-order MADE in the USA
20,000 pound capacity
60" O.D. coil maximum (also available in 80" O.D.)
Removable, 3-position v-saddle
Deck dimensions 48" x 48"
2-Channel Lodar remote controls (two included)
Wired diagnostic pendant included
2hp eurodrive motor and gearbox

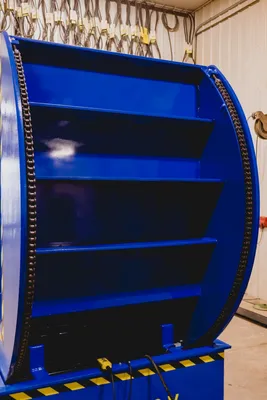

Dual #100 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 54" L x 72" W x 75" H
Weight approx. 3,500lb
Fork slots for easy relocation

OPTIONAL FEATURES:
1. Coilquip Keeper Bar Upgrade
Adjustable keeper bars which extend vertically from saddle ($2,500.00)

2. Coilquip Notched Deck for Overhead Lifting
Notched and reinforced deck for overhead lifting ($2,500.00)

MADE IN USA
FOB Rochester, Indiana
Deposit of 50% and purchase order must be received before the
requested machine can enter the production queue.
Delay in payment will result in longer lead time.

Payment Terms: 50% w/PO, 50% Prior Shipping

Deliver: 10 - 12 Weeks from receipt of PO and Deposit
