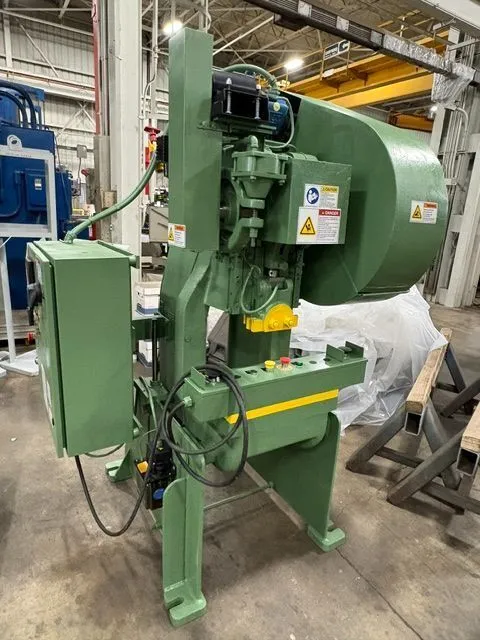

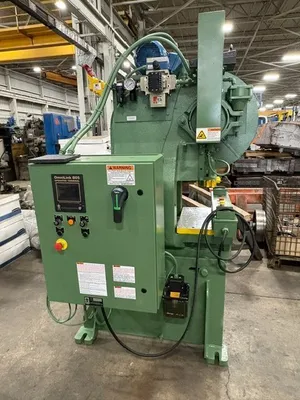

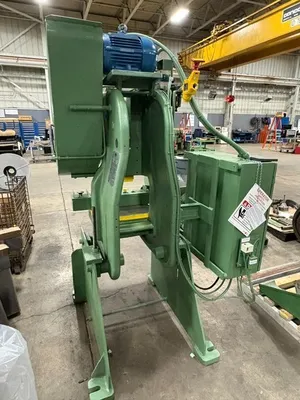

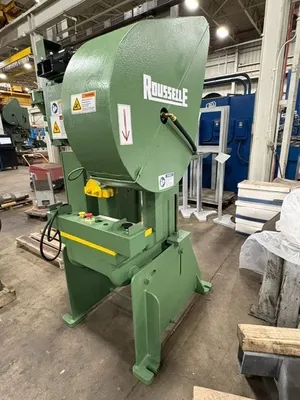

(1) Remanufactured 25 Ton Rousselle Model 3F Flywheel Single Crank OBI Press
Have one to sell?
ConditionNew
1 available
New
Capacity: 25 Ton
Stroke: 2"
Adjustment: 2"
Shut Height: 10.75" over bed
Shut Height: 9.25" over bolster
Bed Area: 20" lr x 14" fb
Speed: 135 SPM
Bolster Thickness: 1.5"
Hole In Bed: 12" lr x 7" fb
Die Shank Hole: 1.562"
Depth of Throat: 7.5"
Width of opening thru back: 13.5"
Floor to top of Bed: 32.75"
Floor to top of Bolster: 34.25"
Degree of incline: 30º
Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 2HP
Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
Imperial
| Ton | 25 T |
| Bed L-R | 20 in |
| Bed F-B | 14 in |
| Stroke | 2 in |
| Adjustment | 2 in |
| Shut Height | 10.75 in |
| Speed (max) | 135 strokes/min. |
| OBI Single Double | SIngle |
| Cushions | No |
| Air Clutch (Yes/No) | Yes |
| Dimensions | 34.5" x 42.5" x 82" tall |
| Weight | 2500# |
Capacity: 25 Ton
Stroke: 2"
Adjustment: 2"
Shut Height: 10.75" over bed
Shut Height: 9.25" over bolster
Bed Area: 20" lr x 14" fb
Speed: 135 SPM
Bolster Thickness: 1.5"
Hole In Bed: 12" lr x 7" fb
Die Shank Hole: 1.562"
Depth of Throat: 7.5"
Width of opening thru back: 13.5"
Floor to top of Bed: 32.75"
Floor to top of Bolster: 34.25"
Degree of incline: 30º
Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 2HP
Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
