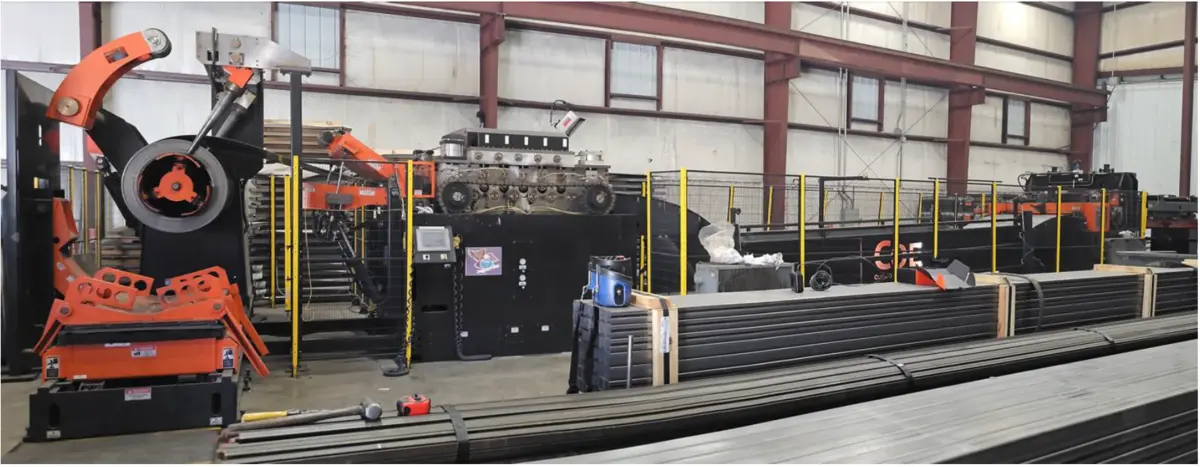

(1) Factory Reconditioned COE 60" x .250" Thick Cut To Length Line with Stacker

CPRF 860: Coe Servo Roll Feed 60" Wide
CPDTT 6030: Coe 60" x 30' Dual Threading Table
CPPS 507 60: Coe 5.00" x 60" Straightener w/ 7" Pinch
CPR-PO 50060: Coe 50,000# x 60" Coil Reel
CP-HPS-RG2-60: Hydraulic Production Shear
CP-STK-60-120: Stacker Conveyor System
CP- Controls: Allen-Bradley ControlLogix w/GuardLogix Controls Package

CPRF-860 Coe Servo Roll Feed 60” Wide
Feed Direction: Left to Right
Pass Line: NA
Primary Color: Coe # TBD – Kubota Orange
Secondary Color: Coe # TBD – Kubota Gloss Black
Voltage: 480v
MCRS - 40,000 PSI Yield - Min: 0.080" thick @ 60.00" wide
MCRS - 40,000 PSI Yield - Max: 0.250" thick @ 60.00" wide
Number of Rolls: 2
Roll Diameter: 8 Inches
Full Body Width: 60 Inches
Drive Ratio: 9.9:1
Acceleration: 20 Feet/Sec/Sec
Roll Speed: 319 Feet/Minute
Feed Accuracy: +/- 0.003 Inch
Roll Feed Standard Features
480 Volt AC Three Phase Supply Voltage
Air Pressure Regulator for Exact Feed Roll Pressure
Cluster Gear Driven Upper Feed Roll with Mating Shafts and Gears
Desk Type Slant Top Control Enclosure
Emergency Stop Push Button
Full Width Upper and Lower Feed Rolls
Fused Electrical Safety Disconnect
High Performance AC Brushless Servo Motor
Remote Jog Pendant
Rigid Machined Tie Bar Construction
Single Cycle Pushbutton for Set-up at Jog Speed
Air Operated High Speed Pilot Pin Mechanism
Funneled Stock Path for Threading and Safety
Pivoting Upper Feed Roll to Assure Full Gear Mesh
Precision Cluster Gear Driven Upper Feed Roll
Sealed Precision Roller Bearings
Lag and Leveling Package
Roll Feed Standard Options
Air Operated Anti-Backup Roller Assembly
End of Stock Shut-off Electric Eye
Feed-Signal-Press / Press-Signal-Feed Electrics
Machine Cabinet for Servo Feed and Shear
Upper and Lower Feed Rolls With #5 Satin Chrome Finish
5 Roll Catenary Support Section with Full Sideplates and Funnels
Roll Feed Special Options
Motorized and Encoded Dual Roll Self Centering Edge Guides
Motorized and Encoded Exit Side Self Centering Edge Guide Assembly

CPDTT-6030 Coe 60” x 30’ Dual Threading Table
Threading Table Standard Features
Adjustable Passline Feature
Air Raise and Lower of Threading Table
Dual Sided Table Construction
Heavy Duty Steel Solid Top Construction
Thread Table Length
Thread Table Set-up for a Looping Pit
Lag and Leveling Package

CPPS-507-60 Coe 5.00” x 60” Power Straightener w/ 7” Pinch
MCRS - 40,000 PSI Yield - Min: 0.080" thick @ 60.00" wide
MCRS - 40,000 PSI Yield - Max: 0.250" thick @ 60.00" wide
Payoff Rate: Up to 140 FPM
Air Cylinder Bore: 8.0”
Pinch Roll Dia.: 6.67”
Breaker Roll Dia.: 5.00”
Power Straightener Standard Features
480 Volt AC Three Phase Supply Voltage
Heavy Duty Welded Straightener Base
Pneumatic Raise and Lower of Upper Pinch Rolls
Rigid Tie Bar Construction of Straightener Head
Straightener Roll Adjustment by Precision Worm Gear Arrangement
Upper Straightener Roll Height Scales and Pointers
Remote Jog Pendant for Material Threading
Electrical Safety Disconnect
Funneled Stock Path for Threading and Safety
Optimized Roll Diameter and Center Distance
Lag and Leveling Package
Power Straightener Standard Options
#5 Satin Chrome Upper and Lower Entrance Pinch Rolls
Automatic Lubrication System
Double Row Upper and Lower Straightener Backup Rollers
Non-Marking Chrome Straightening Rolls
Reel to Straightener Tie in Brackets
125 HP Variable Speed AC Drive
End of Material Detector on Exit Side
HD Alligator Peeler-Dekinker Station
Eleven (11) Roll Straightener Package
Laser Variable Speed Loop Control
Centralized Controls for Straightener and Reel
Power Straightener Special Options
5 Roll Catenary Support Section with Full Sideplates and Funnels
Plexiglas Side Cover
Steel Tube Piping Required for Lubrication System
Motorized & Encoded Self Centering Edge Guides
Motorized and Encoded Upper Breaker Rolls by Job Recipe
Work Roll Advisor
Linespeed Averaging Feature

CPR-PO-50060 Coe 50,000# x 60” Coil Reel
Max. Coil Weight: 50,000 Lbs.
Max. Coil Width: 60 Inches
Max. Coil O.D.: 72 Inches
Expansion Range: 19.25-24.75 Inches
Coil Reel Standard Features
"Bearing Tube" Support of Mandrel
19.25" - 24.75" Mandrel Expansion Range
27" Diameter Heavy Duty Backplate
72" Maximum Coil Outside Diameter
Full Radius Mandrel Pads
Heavy Duty Welded Reel Construction
Hydraulic Mandrel Expansion
Material Width Scale on Mandrel Pad
Three (3) Pad Mandrel Construction
Lag and Leveling Package
Coil Reel Standard Options
Automatic Drag Brake Compensation
Air Clutch Addition to Threading Drive Assembly
Fail Safe Drag Brake - 2 Stage
2- Additional Fail Safe Drag Brake - 2 Stage for Heavy Gauge Applications
Coil Clock Spring Guard
Heavy Duty Hydraulic Threading Drive with Reduction - 60 Cubic Inch
Hydraulic Traveling Coil Car with Remote Jog Pendant
Lower Hold-up Arm with Motorized Endwheel
Powered Coil Guides
Centralized Controls for Straightener and Reel
Coil Reel Special Options
XHD Hold Down Arm with Motorized Endwheel
6 Inch Flip In Risers for Coil Car
Automatic Coil Centering Feature

CP-HPS-RG2-60 Hydraulic Production Shear
Hydraulic Production Shear Equipment:
Mounted on Common Machine Base w/ Servo Roll Feed
As Standard, the Shear is "Fixed" in Position
Maximum stock thickness .250"
Minimum stock thickness .080"
Four side hardened tool steel blades for long wear life
Indexable Four (4) side cutting Blades
Blades hardened to 60 Rc
Single rake angle design of cutting blade
Hydraulic Power Unit Provided for Shear*
Shear cycle time: 1.5 seconds
Maximum BPM 20

CP-STK-60-120 Finger Stacker 60” Wide x 120” Long
Stacker Standard Equipment:
Finger Magnetic Stacker Designed for Straight Drop of Blanks
Straight Drop Assures Best Quality of Part and Stack
Stacker Frame is Integrally Mounted to Shear
Blank Remains Supported During Feed Cycle
Support Fingers Pivot Open During Shear Cycle
Fast Acting Opening of Fingers is by Air Cylinders
Adjustable Side Guides Provided for Various Widths
Adjustable Back Stop Provided for Various Lengths
Motorized and Encoded Side Guides and Back Stop Adjustment
Digital Position Display on Operator Station
Laser Sensor to Adjust Scissor Lift Table as Blanks are Processed
Lag and Leveling Package
Blank Sizes:
Minimum Width: 24"
Maximum Width: 60"
Minimum Length: 24"
Maximum Length: 120"
Maximum Stack Weight: 6,600 lbs.
Standard Stack Handling Configuration:
T-Shaped configuration with one (1) Powered Scissor Lift Table and
chain conveyors for load/unload stations.
The lift table is used as both the load and unload stations.
Pallets are placed on the lift table while it’s outside of the stacking box.
The table is then jogged into stacking position.
Once a full stack or batch count is achieved,
the stacker table will be lowered, then the motorized table can be extended
for the removal of the full stack.

CP-Controls Allen-Bradley ControlLogix w/GuardLogix Controls Package

Feed:
A-B Kinetix 6500
A-B MPL Series Motors
PanelView Plus 6 Operator Touchscreen - 10" Screen
PanelView Mounted on Pedestal
Touch Screen Language - English
Single-Axis Feeding Applications
Multi-Axis Feeding Applications
Custom Painted Control Enclosure
Edge Guides

Straightener:
A-B Variable Speed Drive
A-B PLC w/Motion ControlLogix w/GuardLogix
PLC is "accessible" in Free Standing Enclosure
PanelView Plus 6 Operator Touchscreen - 10" Screen
Machine Functions Operated by PanelView
Touch Screen Language - English
Ethernet Communication w/ Feed
Multi Door Free Standing Enclosure
Automatic Lubrication Control
Edge Guides

Reel:
Automatic Expansion Control
Automatic Drag Brake Control
Powered Coil Guides
Lower Hold-up Arm with Motorized Endwheel

Stacker:
Backstop Adjust
Side Guide Adjust
Side Rail
Stacker Table Adjust

Recipe Driven:
Automatic Feed Edge Guides
Automatic Straightener Edge Guides
Automatic Straightener Rolls
Work Roll Advisor (WRA)
Linespeed Averaging Feature
Laser Loop Control Depth Setting
Auto Coil Centering on Mandrel
Automatic Backstop Adjustment
Automatic Side Guides Adjustment

Coe Standard Safety Plan:
Dual Channel Safety Capable
Dual Channel Emergency Stop
Emergency Stop Zone:
Emergency Stop is invoked by pushing one of the
red mushroom headed E-Stop pushbuttons.
This turns off motion output power to the machine.
The drives will either safe torque off or be powered down completely.
The Emergency Stop Zone includes the entire Coe Press Line and
can be interlocked with the Press to allow a Press E-Stop to also
cause the Coe System to Emergency Stop.
This safety is designed with a dual channel safety monitoring relay.
