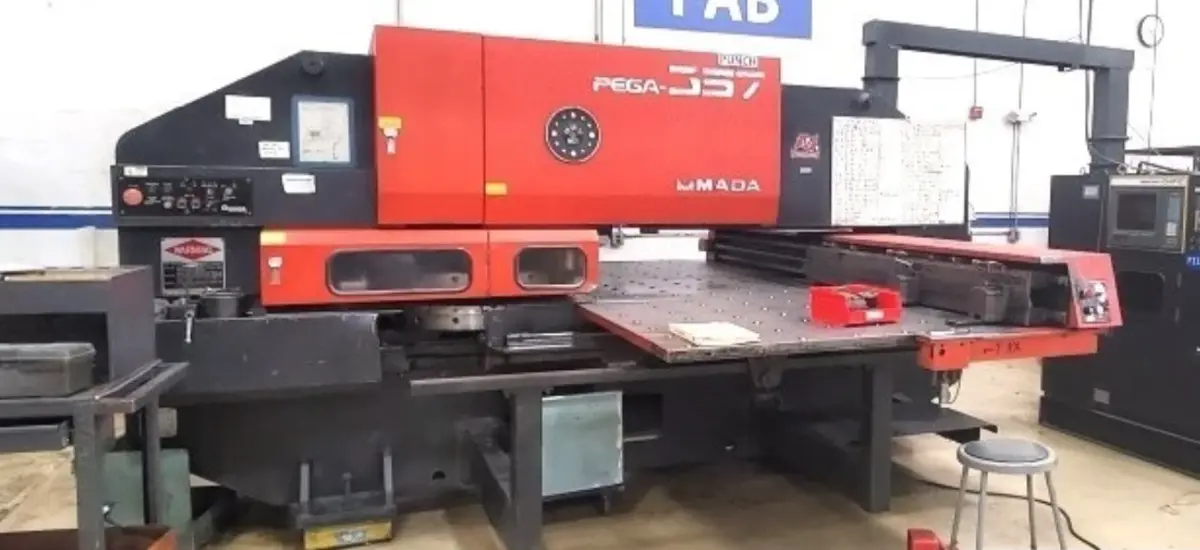

(1) Used Amada Pefa 357 Turret Punch Press

Capacity 30 tons
Sheet Size 50 x 72
Thickest Material 1/4 "
Max Hole Diameter 4.5"
Number of Turret Stations 58 with A/I
Strokes Per Minute 350
Axis Speed 2000 IPM
Hits Per Min. 1" centers 220
Control Model Fanuc 04PC
Drive motors AC Servo
Smallest Programmable Increment .001"
Power Requirements 230/208/460/60/3 phase
Machine Weight 30,000 lbs
Built-in Microprocessor
Standard software included for programming a comprehensive set of patterns
used in punching, nibbling, and notching operations.
Diagnostic System - Extensive diagnostic system indicates programming
errors and pinpoints machine and control malfunctions.
Stripping Sensor - Automatically halts machine operation if
tool does not strip.
Automatic Repositioning - Heavy duty work holders secure material
during repositioning.
Hydraulic clutch and brake system.
Metric or inch dimensional programming.
Precision ground recirculating ball lead screws for X and Y Axis.
Crash proof clamp sensors.
Hardened and ground turret index pins and bushings.
Safety interlocks and overrun protectors with all step control
prevents accidents.
58 station turret for thick tooling. (2 Auto Index Stations).
Fanuc 04PC control with CRT screen and keyboard unit with memory
functions and editing at control feature.
