(1) Used 12,000# x 24" x .125" (.170" @ 12") Dallas Complete Coil Feed Line
Have one to sell?
ConditionUsed
1 available
$59,500.00 USD

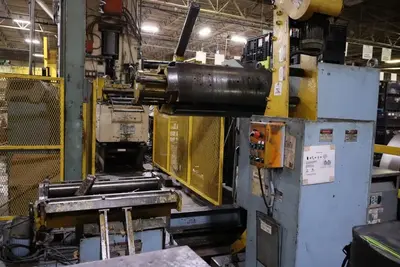

Coil Reel
Max Coil Weight: 12,000#
Max Coil Width: 36""
Max Coil OD: 60"
Coil ID Range: 19" - 23"
Hydraulic Expansion
Motorized Pay Off
Traveling Coil Car
Coil Guide Rollers (Manual width adjustment)
Hold Down w/ Power Roller

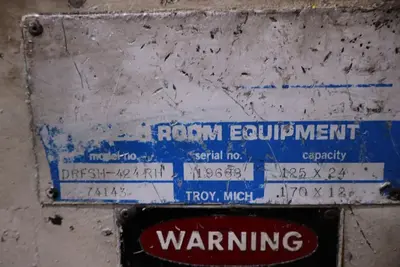

Feeder / Straightener: Model: DRFSH-424RH
Serial#19688
Max Coil Width: 24"
Coil Thickness: .125" @ 24" wide / .170" @ 12" wide
Adjustable Edge Rollers
Initial Pinch Roll
7 Roll Straightener
Imperial
| Max Coil Weight | 12000 lb |
| Max Coil Width | 24 in |
| Max Coil Thickness | 0.17 in |
| Coil OD | 72 in |
| Coil ID Range | 20 - 24" |
| Coil Car | YES |
Coil Reel
Max Coil Weight: 12,000#
Max Coil Width: 36""
Max Coil OD: 60"
Coil ID Range: 19" - 23"
Hydraulic Expansion
Motorized Pay Off
Traveling Coil Car
Coil Guide Rollers (Manual width adjustment)
Hold Down w/ Power Roller
Feeder / Straightener: Model: DRFSH-424RH
Serial#19688
Max Coil Width: 24"
Coil Thickness: .125" @ 24" wide / .170" @ 12" wide
Adjustable Edge Rollers
Initial Pinch Roll
7 Roll Straightener
