(1) Used 20,000# x 48" x .100" @ 48" (.250" @ 12") Dallas Complete Coil Feed Line
Have one to sell?
ConditionUsed
1 available
$129,500.00 USD

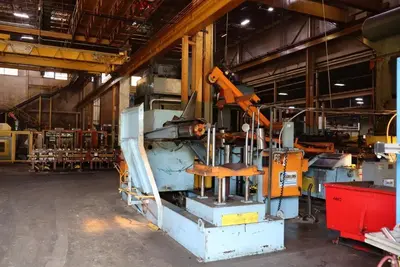

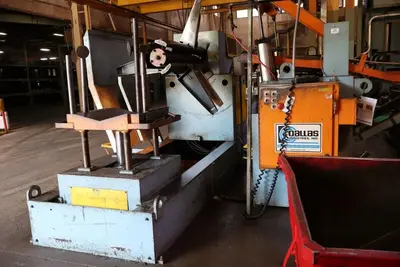

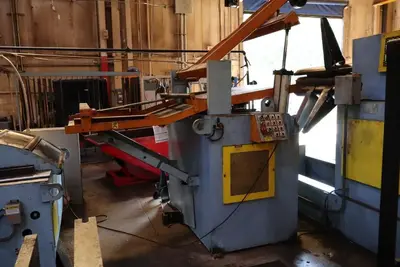

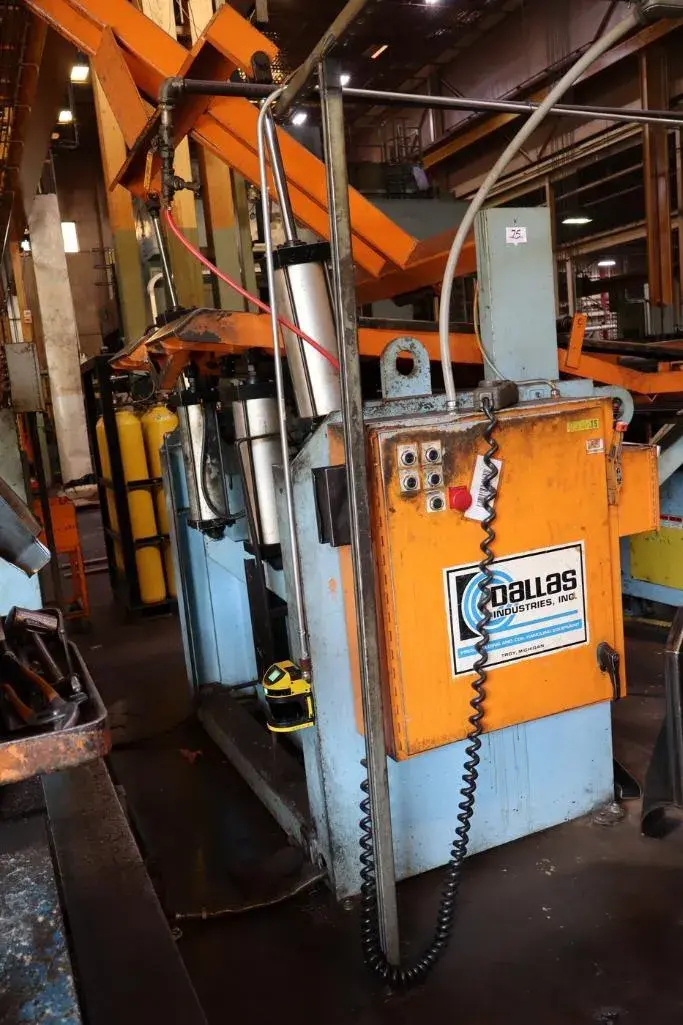

Dallas Complete Coil Feed Line, Model DPR-20,000#x48. Used but in good condition, designed for coils up to 20,000 lbs, 48" wide, with max thickness of 0.17". Ideal for handling coil OD of 72" and ID range of 20-24". Perfect for industrial applications.
Coil Reel: Model: 20,000# x 48
Serial#21569
Max Coil Weight: 20,000#
Max Coil Width: 48"
Max Coil OD: 72"
Coil ID Range: 20" - 24"
(6) Coil Keepers
Hydraulic Expansion
Hold Down Arm w/ Roller
Peeler and Threading Table
Motorized Pay Off
Traveling Coil Car
Feeder / Straightener
Max Coil Width: 48"
Max Coil Thickness: .100" @ 48" (.250" @ 12")
Adjustable Edge Rollers
Initial Pinch Roll
7 Roll Straightener
Allen Bradley Panel View 600
Dallas Complete Coil Feed Line, Model DPR-20,000#x48. Used but in good condition, designed for coils up to 20,000 lbs, 48" wide, with max thickness of 0.17". Ideal for handling coil OD of 72" and ID range of 20-24". Perfect for industrial applications.
Imperial
| Max Coil Weight | 20000 lb |
| Max Coil Width | 48 in |
| Max Coil Thickness | 0.25 in |
| Coil OD | 72 in |
| Coil ID Range | 20 - 24" |
Coil Reel: Model: 20,000# x 48
Serial#21569
Max Coil Weight: 20,000#
Max Coil Width: 48"
Max Coil OD: 72"
Coil ID Range: 20" - 24"
(6) Coil Keepers
Hydraulic Expansion
Hold Down Arm w/ Roller
Peeler and Threading Table
Motorized Pay Off
Traveling Coil Car
Feeder / Straightener
Max Coil Width: 48"
Max Coil Thickness: .100" @ 48" (.250" @ 12")
Adjustable Edge Rollers
Initial Pinch Roll
7 Roll Straightener
Allen Bradley Panel View 600
