(1) Remanufactured 25 Ton Rousselle Single Point Gap Frame Flywheel Press
Have one to sell?
ConditionUsed
1 available

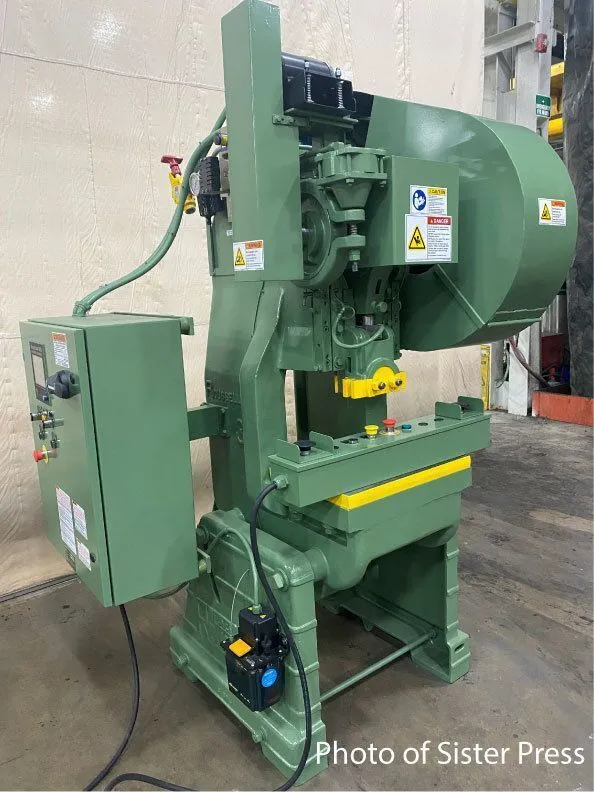

Remanufactured 25 Ton Rousselle #3-F Gap Frame Flywheel Press, used, with a 20x14 in bed, 135 strokes/min, and a 2 in stroke. Air clutch and brake, automatic oil lubrication. Perfect addition for efficient and powerful press operations.
Capacity 25 Ton
Frame Type OBI
Rated Distance Near Bottom Stroke
Drive Type Flywheel
Strokes Per Minute 135
Stroke 2
Bed Size 20 × 14
Bolster Area 20 × 14
Bolster Thickness 1.5
Bed Opening 12x7
Slide Area 8.25
Slide Adjustments 2
Slide Adjustment Type Manual
Die Shank Hole 1.562
Shut Height Above Bed 10.75
Shut Height Above Bolster 9.25
Depth Of Throat 7.5
Width Of Opening Through Back 13.5
Floor To Top Of Bed 32.75
Floor To Top Of Bolster 34.25
Clutch and Brake Type Air
Degree Of Incline 30
Control Type Link 5100 MPC
Motor 2 HP
Operating Station One
Lubrication Automatic Oil
Floor Space 34.5 X 42.5
Overall Height 84
Voltage Customer to Advise 208, 220 or 480 volts 3ph 60hz
Color Vista Green
Weight 2500
Remanufactured 25 Ton Rousselle #3-F Gap Frame Flywheel Press, used, with a 20x14 in bed, 135 strokes/min, and a 2 in stroke. Air clutch and brake, automatic oil lubrication. Perfect addition for efficient and powerful press operations.
Imperial
| Ton | 25 T |
| Bed L-R | 20 in |
| Bed F-B | 14 in |
| Stroke | 2 in |
| Adjustment | 2 in |
| Shut Height | 10.75 in |
| Speed (max) | 135 strokes/min. |
| OBI Single Double | SIngle |
| Cushions | NO |
| Dimensions | 34.5" x 42.5" x 84" high |
| Weight | 2500 |
Capacity 25 Ton
Frame Type OBI
Rated Distance Near Bottom Stroke
Drive Type Flywheel
Strokes Per Minute 135
Stroke 2
Bed Size 20 × 14
Bolster Area 20 × 14
Bolster Thickness 1.5
Bed Opening 12x7
Slide Area 8.25
Slide Adjustments 2
Slide Adjustment Type Manual
Die Shank Hole 1.562
Shut Height Above Bed 10.75
Shut Height Above Bolster 9.25
Depth Of Throat 7.5
Width Of Opening Through Back 13.5
Floor To Top Of Bed 32.75
Floor To Top Of Bolster 34.25
Clutch and Brake Type Air
Degree Of Incline 30
Control Type Link 5100 MPC
Motor 2 HP
Operating Station One
Lubrication Automatic Oil
Floor Space 34.5 X 42.5
Overall Height 84
Voltage Customer to Advise 208, 220 or 480 volts 3ph 60hz
Color Vista Green
Weight 2500
